A short PCB antenna 2.4 GHz
8 mm long
1 mm wide
5.6 nH real

Main trace is matched with actual network values.

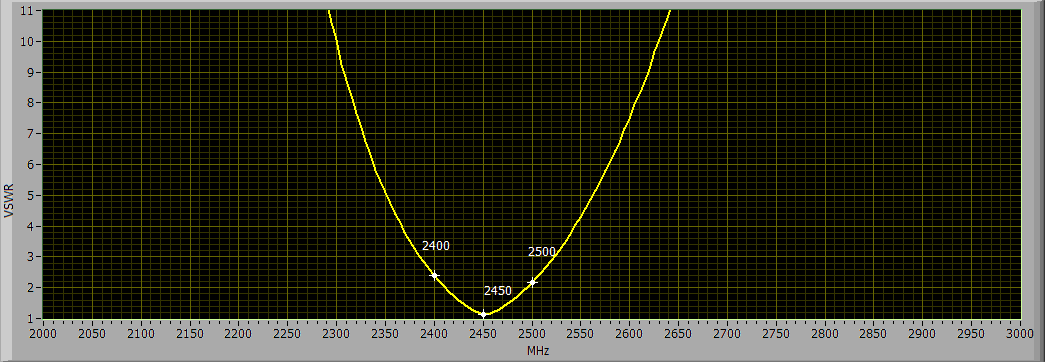

Antune_Graph
  Antenna Main     No match

 MHz   VSWR   RL dB   Real Ohm   Img Ohm   React
 2400   2.82   -6.45   18.3   7.95   0.527 nH
 2450   1.29   -18.0   44.3   10.5   0.683 nH
 2500   1.80   -10.9   63.7   -30.6   2.08 pF

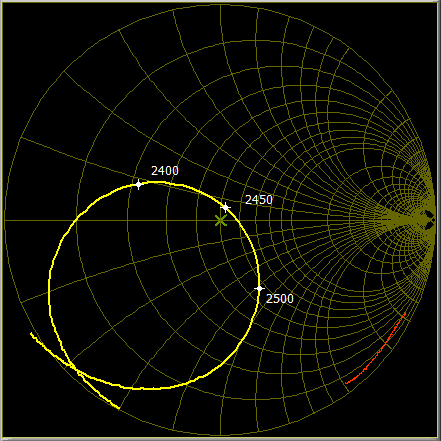

Smith_AnTune

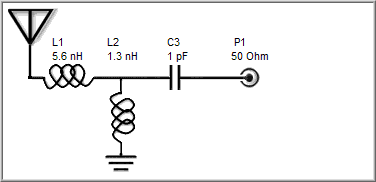

Schema_AnTune
 Position   Value   Size   Art.No.   Brand
 L1   5.6 nH   0402    LQG15HS5N6S02   Murata
 L2   1.3 nH   0402    LQG15HS1N3S02   Murata
 C3   1 pF   0402    GRM1534C1H1R0CDD5   Murata
